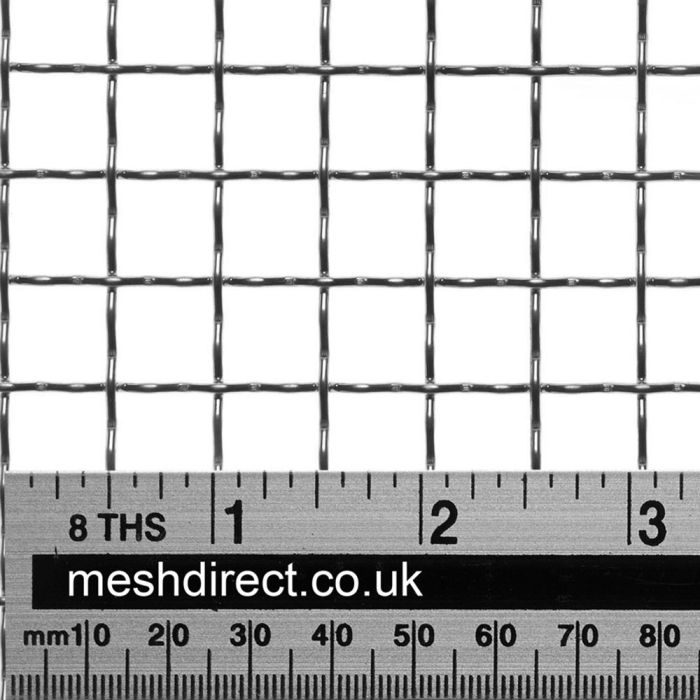

Woven Stainless Wire mesh - 2 mesh - 11 mm aperture
Quality stainless steel woven wire mesh, sold by the linear metre. Our woven 2 mesh has an 11mm hole size and 1.6mm thick wire. Manufactured in accordance with ISO 9001:2015.
Woven Stainless Wire mesh - 2 mesh - 11 mm aperture
Quality stainless steel woven wire mesh, sold by the linear metre. Our woven 2 mesh has an 11mm hole size and 1.6mm thick wire. Manufactured in accordance with ISO 9001:2015.
Need help from our team? Click here
| Size | Price | Qty | |
|---|---|---|---|
Grade 304 Stainless Steel, Width 1.22m (4ft) |
|||
|
Grade 304 Stainless, 1.22 metre wide roll (sold per metre)
Code: 304-SW2 More info Less info Our woven 2 Mesh is a reasonably rigid mesh. Although the mesh is manufactured on a roll, when flattened the mesh will be panel-like. Our heavier woven meshes may be supplied in either a crimped finish or a plain weave finish. If the finish is critical to your application, please call us on 01782 820 970 for confirmation on which finish is available. |
|
||
Grade 316 Stainless Steel, Width 1.22m (4ft) |
|||
|
Grade 316 Stainless, 1.22 metre wide roll (sold per metre)
Code: 316-SW2 More info Less info Our woven 2 Mesh is a reasonably rigid mesh. Although the mesh is manufactured on a roll, when flattened the mesh will be panel-like. Grade 316 stainless steel has a higher resistance to corrosion. Our heavier woven meshes may be supplied in either a crimped finish or a plain weave finish. If the finish is critical to your application, please call us on 01782 820 970 for confirmation on which finish is available. |
|
||
Sample Sizes, £1.99 Delivery To UK Mainland (sold By Sample Size) |
|||
|
Large Sample 300mm x 200mm (A4 sized)
Code: 2mesh-A4 More info Less info This is a large sample of the woven mesh (approximate size 300mm x 200mm). £1.99 delivery to UK Mainland. |
|
||
Description
Woven stainless steel mesh is used for a large number of applications, including filtration, ventilation, machine guards, pest proofing. Our woven 2 Mesh is a reasonably rigid material. Although the mesh is manufactured on a roll, when flattened the mesh will be panel-like.
The mesh count refers to how many holes there are on a linear inch on the material i.e. if you place a ruler on the mesh, our 2 Mesh would have 2 holes per linear inch.
We can offer either standard grade 304 stainless steel, or the higher quality grade 316 stainless steel (sometimes called Marine Grade). Grade 316 stainless steel contains molybdenum, which is added to boost its resistance to corrosion and should be selected if the material is to be used in a salt water or coastal environment.
Please note that from time to time we may substitute grade 304 stainless steel for the higher quality grade 316 stainless steel (unless we are requested not to do so). Also, our heavier woven mesh may be supplied in either a crimped finish or a plain weave finish. If the finish is critical to your application, please call us on 01782 820 970 for confirmation on which finish is available. Samples are supplied from off-cuts of the woven mesh, and so may alternate between Grade 304 and Grade 316 stainless steel.
The material is priced per linear metre on the website.
Specification
- Woven 2 Mesh
- Standard Wire Gauge 16
- Wire thickness 1.6 mm
- Aperture (hole size) 11.1 mm
- Open area 76.4%
- 11100 microns
- Weight per square metre 2.69kg
- Woven Stainless Steel, Grade 304 and Grade 316 available
- Manufactured in accordance with ISO 9001:2015
- Please click on the following links for a pdf Data Sheet: Grade 304 Data Sheet ; Grade 316 Data Sheet
All measurements +/- 5%. If you require a micrometer reading of the wire thickness then please call us on 01782 820 970.
