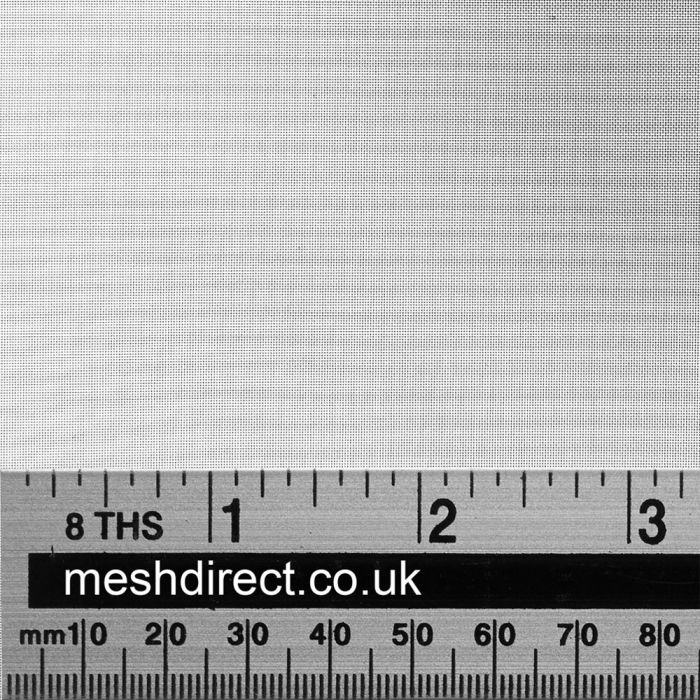

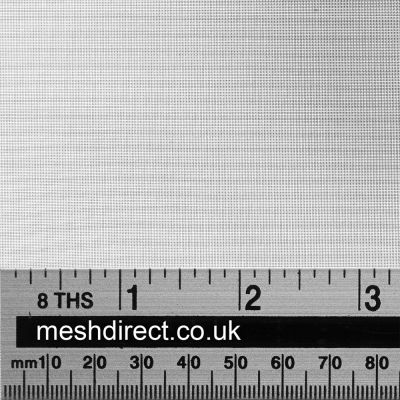

Woven Stainless Wire Cloth 80 mesh - 0.18 mm aperture
Quality stainless steel woven wire mesh, sold by the linear metre. Our woven 80 mesh has a 0.18mm hole size and 0.14mm thick wire. Manufactured in accordance with ISO 9001:2015.
Woven Stainless Wire Cloth 80 mesh - 0.18 mm aperture
From £12.99 inc VAT
Quality stainless steel woven wire mesh, sold by the linear metre. Our woven 80 mesh has a 0.18mm hole size and 0.14mm thick wire. Manufactured in accordance with ISO 9001:2015.
Size | Price | Qty | |
---|---|---|---|
Grade 316 Stainless Steel, Width 1.22m (4ft) |
|||
Grade 316 Stainless, 1.22 metre wide roll (sold per metre)
Code: 316-SW80 More info Less info Our woven 80 Mesh is a very fine mesh with a small hole size. Given that the material is very flexible, it may need the support of a frame to add rigidity. Grade 316 stainless steel has a higher resistance to corrosion. |
|
||
10" Heavy-duty Scissors For Cutting Wire Up To 0.5mm Thick |
|||
Heavy-duty Scissors for Woven Mesh
Code: FIN-225 More info Less info These German made 10" scissors have ice-hardened steel blades which are ideal for cutting woven mesh with a wire diameter up to 0.5mm thick. |
|
||
Sample Sizes, £1.99 Delivery To UK Mainland (sold By Sample Size) |
|||
Large Sample 300mm x 200mm (A4 sized)
Code: 80mesh-A4 More info Less info This is a large sample of the woven mesh (approximate size 300mm x 200mm). £1.99 delivery to UK Mainland. |
|
Description
Woven stainless steel mesh is used for a large number of applications, including filtration, ventilation, machine guards, pest proofing. Woven 80 Mesh is a very fine mesh with a small hole size. Given that the material is very flexible, it may need the support of a frame to add rigidity.
The mesh count refers to how many holes there are on a linear inch on the material i.e. if you place a ruler on the mesh, our 80 Mesh would have 80 holes per linear inch.
This mesh is only available in our higher quality grade 316 stainless steel (sometimes called Marine Grade). Grade 316 stainless steel contains molybdenum, which is added to boost its resistance to corrosion and should be selected if the material is to be used in a salt water or coastal environment.
The material is priced per linear metre on the website.
Specification
- Woven 80 Mesh
- Standard Wire Gauge 38.5
- Wire thickness 0.14 mm
- Aperture (hole size) 0.178 mm
- Open area 31.3%
- 178 microns
- Weight per square metre 0.78kg
- Woven Stainless Steel, Grade 316
- Manufactured in accordance with ISO 9001:2015
- Please click on the following link for a pdf Data Sheet: Grade 316 Data Sheet
All measurements +/- 5%. If you require a micrometer reading of the wire thickness then please call us on 01782 820 970.
